rubber strip and rubber block cutter

  • rubber strip and rubber block cutter
  • rubber strip and rubber block cutter
  • rubber strip and rubber block cutter
  • rubber strip and rubber block cutter
  • rubber strip and rubber block cutter
  • rubber strip and rubber block cutter
Lugar de origen Porcelana
Nombre de la marca hualong
Certificación ISO,CE
Cantidad de orden mínima 1
Detalles de empaquetado A granel
Capacidad de la fuente 50 conjuntos por mes

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Operating Instructions:

1. Turn on the power and start the main motor first. After the motor operates normally, prepare to feed materials;.

2. An operator will place the radius of the tire cut out by the tire dismantling machine on the rotating pallet. The pallet is lifted by the hydraulic cylinder controlled by the worker's button. The cutter will automatically eat and cut into small pieces of 50mm rubber. The shearing operation will be cyclic until the lip ring. After cutting to the lip ring, the button will return to the hydraulic cylinder to remove the lip ring and continue to put the radius tire cut by the tire dismantling machine. This cycle can work.

Operating Instructions:

1. Turn on the power and start the main motor first. After the motor operates normally, prepare to feed materials;.

2. An operator will place the radius of the tire cut out by the tire dismantling machine on the rotating pallet. The pallet is lifted by the hydraulic cylinder controlled by the worker's button. The cutter will automatically eat and cut into small pieces of 50mm rubber. The shearing operation will be cyclic until the lip ring. After cutting to the lip ring, the button will return to the hydraulic cylinder to remove the lip ring and continue to put the radius tire cut by the tire dismantling machine. This cycle can work.





Operating Instructions:

1. Turn on the power and start the main motor first. After the motor operates normally, prepare to feed materials;.

2. An operator will place the radius of the tire cut out by the tire dismantling machine on the rotating pallet. The pallet is lifted by the hydraulic cylinder controlled by the worker's button. The cutter will automatically eat and cut into small pieces of 50mm rubber. The shearing operation will be cyclic until the lip ring. After cutting to the lip ring, the button will return to the hydraulic cylinder to remove the lip ring and continue to put the radius tire cut by the tire dismantling machine. This cycle can work.





Operating Instructions:

1. Turn on the power and start the main motor first. After the motor operates normally, prepare to feed materials;.

2. An operator will place the radius of the tire cut out by the tire dismantling machine on the rotating pallet. The pallet is lifted by the hydraulic cylinder controlled by the worker's button. The cutter will automatically eat and cut into small pieces of 50mm rubber. The shearing operation will be cyclic until the lip ring. After cutting to the lip ring, the button will return to the hydraulic cylinder to remove the lip ring and continue to put the radius tire cut by the tire dismantling machine. This cycle can work.

QUOTATION FOR RUBBER POWDER LINE

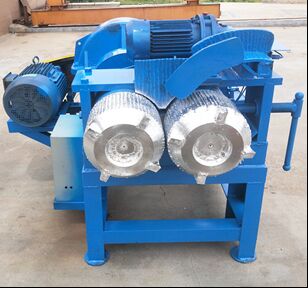

Rubber strip block cutter can get 50*50mm rubber block

<img alt="" src=" </div> <div jsaction=" ije3ge:yufc7d;dmzwq:nubux"="">

Blade number of turns 450 turns/min
Active blade quantity 2 pieces
Fixed knife quantity 1 piece
Motor power 44kw
Working voltage 415v,50hz
Output 30-60tires/hour
Overall size 2100*1800*2400mm
Total weight 3500kgs
Price FOBQINGDAO USD9500
Press loop machine
rubber strip and rubber block cutter 0
Name Press loop machine
Type YQJ-285
Useful Seperate rubber and steel
Motor power 22kw
Front roller speed(r/min) 15.5
Speed ratio 1.1
Overall size(mm) 1520*1150*1210
